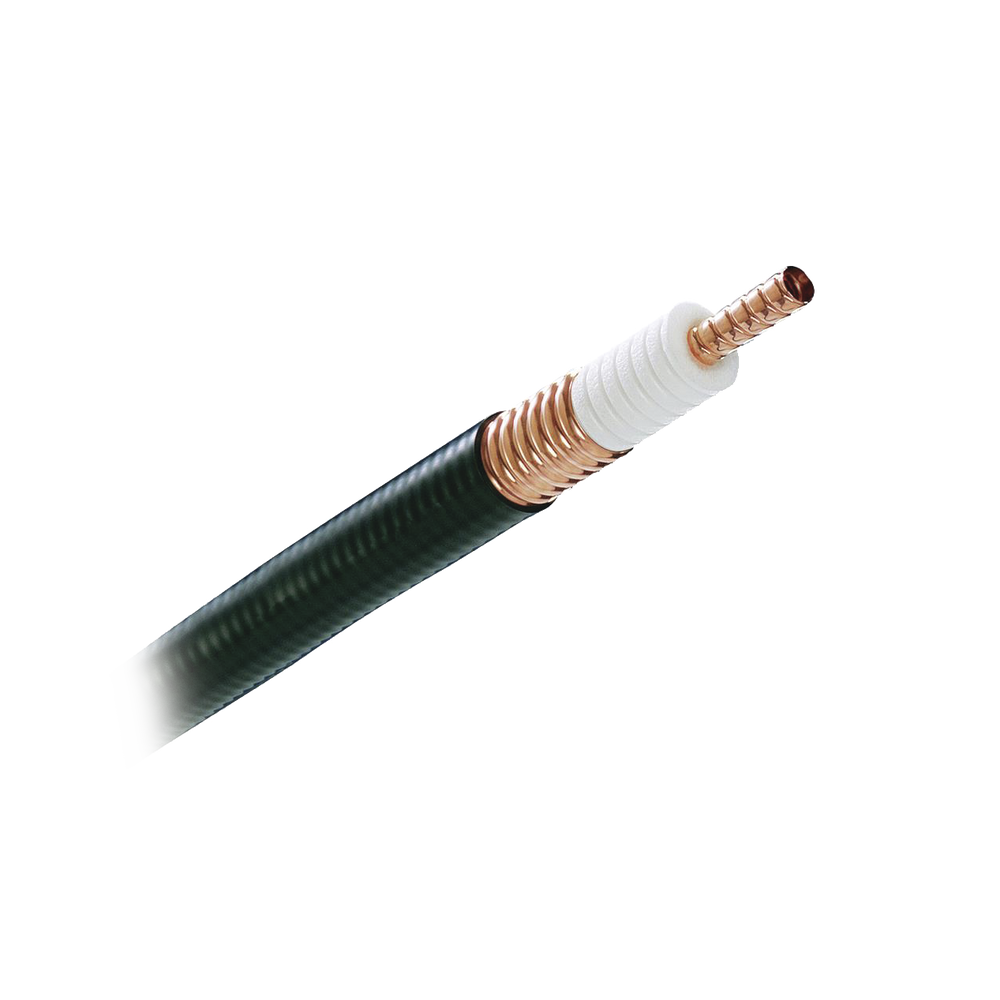

ANDREW / COMMSCOPE AVA750 HELIAX Andrew Virtual Air Coaxial

ANDREW / COMMSCOPE AVA7-50 HELIAX Andrew Virtual Air Coaxial Cable corrugated copper 1-5/8" black PE jacket

Electrical Specifications

• Cable Impedance 50 ohm ±1 ohm
• Capacitance 22.0 pF/ft 72.2 pF/m
• dc Resistance Inner Conductor 0.410 ohms/kft 1.435 ohms/km
• dc Resistance Outer Conductor 0.160 ohms/kft 0.525 ohms/km
• dc Test Voltage 15000 V
• Inductance 0.187 μH/m 0.057 μH/ft
• Insulation Resistance 100000 Mohms•km
• Jacket Spark Test Voltage (rms) 10000 V
• Operating Frequency Band 1 – 2700 MHz
• Peak Power 302.0 kW
• Velocity 92%

PRICE PER METER

2026-08-05 07:35:29

Page: 3

AVA750 ANDREW / COMMSCOPE HELIAX Andrew Virtual Air Coaxial Cable corrugated copper 1-5/8" black PE jacket AVA7-50
