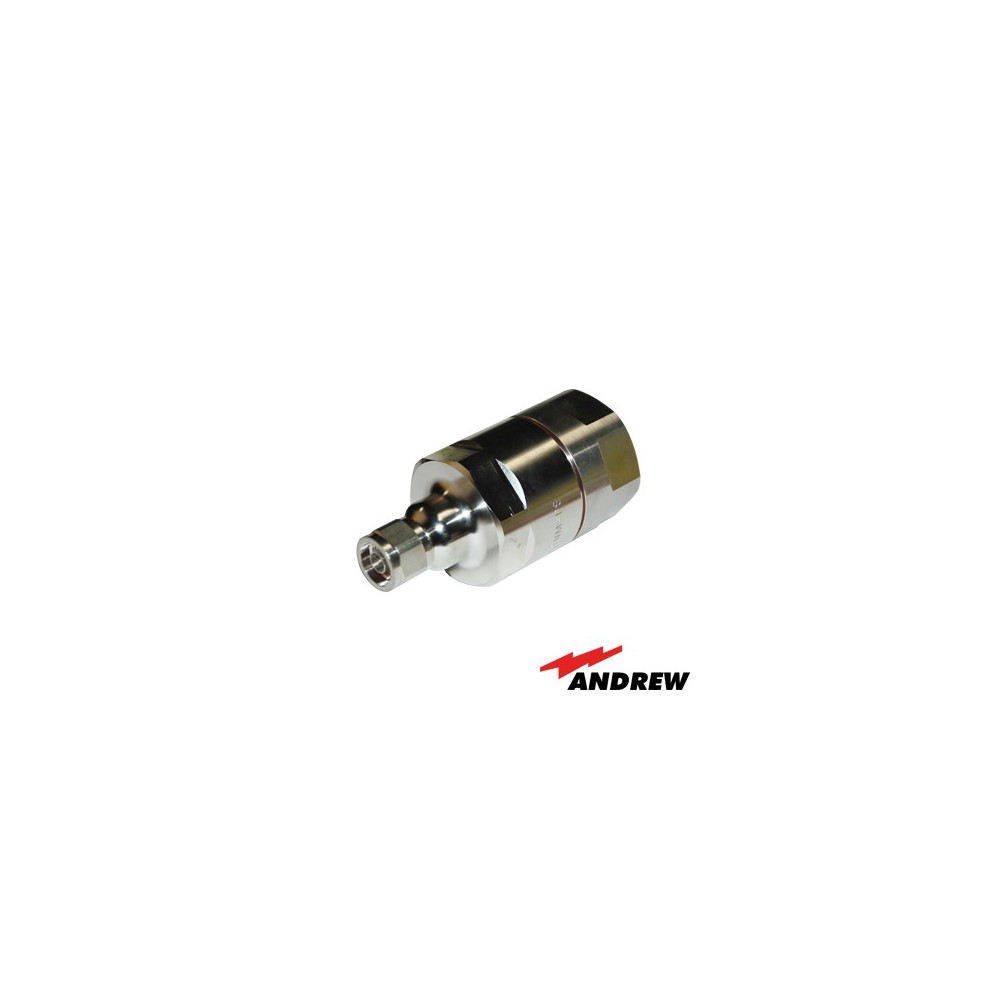

ANDREW / COMMSCOPE L6TNMPS Type N Male Positive Stop Heliax

ANDREW / COMMSCOPE L6TNM-PS Type N Male Positive Stop Heliax Standard Cable LDFL650 (1-1/4")

• Connector Impedance      50 ohm
• Operating Frequency Band      0 – 3300 MHz
• Cable Impedance      50 ohm
• 3rd Order IMD typical      -116 dBm 910 MHz
• 3rd Order IMD Test Method      Two 43 dBm carriers
• RF Operating Voltage maximum (vrms)      707.00 V
• DC Test Voltage      2000 V
• Outer Contact Resistance maximum      0.30 mOhm
• Inner Contact Resistance maximum      2.00 mOhm
• Insulation Resistance minimum      5000 MOhm
• Average Power      0.6 kW 900 MHz
• Peak Power maximum      10.00 kW
• Insertion Loss typical      0.05 dB
• Shielding Effectiveness      -130 dB
• Interface      N Male
• Body Style      Straight
• Brand      HELIAX®     OnePiece™
• Mounting Angle      Straight

• Outer Contact Attachment Method      Ring-flare
• Inner Contact Attachment Method      Captivated
• Outer Contact Plating      Trimetal
• Inner Contact Plating      Silver
• Attachment Durability      25 cycles
• Interface Durability      500 cycles
• Interface Durability Method      IEC 61169-16:9.5
• Connector Retention Tensile Force      1779 N     400 lbf
• Connector Retention Torque      10.85 N-m     96.00 in lb
• Insertion Force      66.72 N     15.00 lbf
• Insertion Force Method      MIL-C-39012C-3.12 4.6.9
• Pressurizable      No
• Coupling Nut Proof Torque      4.52 N-m     40.00 in lb
• Coupling Nut Retention Force      444.82 N     100.00 lbf
• Coupling Nut Retention Force Method      MIL-C-39012C-3.25 4.6.22

• Nominal Size      1-1/4 in
• Diameter      51.31 mm     2.02 in
• Length      104.90 mm     4.13 in
• Weight      608.35 g     1.34 lb

• Operating Temperature      -55 °C to 85 °C (-67 °F to 185 °F)
• Storage Temperature      -55 °C to 85 °C (-67 °F to 185 °F)
• Immersion Depth      1 m
• Immersion Test Mating      Unmated
• Immersion Test Method      IEC 60529:2001 IP68
• Water Jetting Test Mating      Unmated
• Water Jetting Test Method      IEC 60529:2001 IP66
• Moisture Resistance Test Method      MIL-STD-202F Method 106F
• Mechanical Shock Test Method      MIL-STD-202F Method 213B Test Condition C
• Thermal Shock Test Method      MIL-STD-202F Method 107G Test Condition A-1 Low Temperature -55 °C
• Vibration Test Method      MIL-STD-202F Method 204D Test Condition B
• Corrosion Test Method      MIL-STD-1344A Method 1001.1 Test Condition A

• Attenuation Ambient Temperature      20 °C     68 °F
• Average Power Ambient Temperature      40 °C     104 °F
• Return Loss/VSWR
• Frequency Band    VSWR    Return Loss (dB)
• 45–400 MHz    1.02    39.00
• 401–805 MHz    1.02    39.00
• 806–960 MHz    1.02    39.00
• 961–1709 MHz    1.03    37.00
• 1710–2170 MHz    1.03    36.00
• 2170–2399 MHz    1.04    35.00
• 2400–2700 MHz    1.04    34.00
• 2700–3500 MHz    1.05    32.00
• 3400–3600 MHz    1.07    30.00

• Agency    Classification
• RoHS 2011/65/EU    Compliant by Exemption
• China RoHS SJ/T 11364-2006    Above Maximum Concentration Value (MCV)
